Did you know that poorly insulated roofs are responsible for up to 30% of energy loss in residential and commercial buildings? This not only leads to higher utility bills but also contributes to carbon emissions and indoor discomfort. As energy efficiency becomes a global priority, installing the right roof insulation is no longer optional—it's essential.
Among the many insulation materials available, the PU insulation board has emerged as a market leader due to its thermal efficiency, durability, and lightweight structure. Whether you're working on a new build or upgrading an existing roof system, understanding how to properly install PU insulation boards is crucial for maximizing energy savings and performance.
In this post, you'll learn everything you need to know about the PU insulation board roof installation process—from tools and materials needed to common mistakes to avoid. We'll also break down installation methods for different roof types and highlight why HUAYU's PU insulation boards are the ideal choice for your roofing project.
PU insulation board provides superior thermal insulation, moisture resistance, and fire performance, making it ideal for flat and pitched roof systems.
Proper installation involves selecting the right tools, following structured steps, and avoiding common mistakes like poor joint sealing or inadequate vapor control.

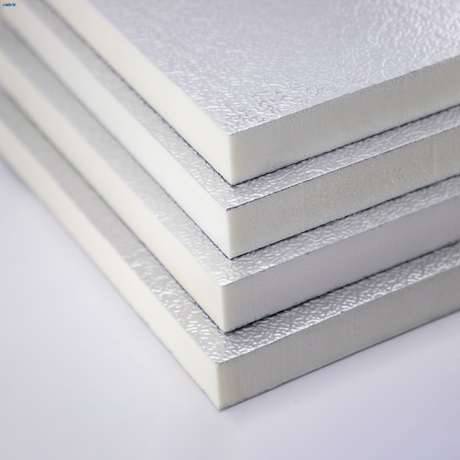

PU insulation boards—made from polyurethane rigid foam—are engineered for high-performance thermal insulation in all kinds of building envelopes. When it comes to roofs, they offer a unique combination of benefits that make them stand out:
| Feature | Benefit for Roof Systems |
|---|---|
| Low Thermal Conductivity (λ ≤ 0.022 W/m·K) | Superior insulation performance with thinner layers |
| Lightweight | Easy to transport and install, especially on high roofs |
| High Compressive Strength (≥ 150 kPa) | Withstands roof loads without deformation |
| Closed-cell Structure | Excellent moisture resistance, reducing risk of mold or degradation |
| Fire Resistance (B1/B2 Rated) | Enhanced safety, especially in residential and commercial buildings |
| Compatibility with Waterproofing | Can be used under membranes, bitumen, or metal sheet roofing systems |
| Dimensional Stability | Maintains form under temperature fluctuations |
Compared to other materials like EPS, XPS, or mineral wool, PU insulation board offers higher R-values per inch, making it the preferred solution for energy-efficient and space-limited roof designs.
Before beginning your PU insulation board roof installation, make sure you have the following tools and materials ready:
Utility knife or insulation saw
Measuring tape
PU adhesive or mechanical fasteners
Vapor control layer (if required)
Waterproofing membrane or cover board
Safety gloves, goggles, and non-slip shoes
Roller or hand trowel (for adhesive application)
Level ruler or laser level
Chalk line
PU insulation boards (choose correct thickness & facing)
Vapor barrier (polyethylene or aluminum foil)
PU-compatible adhesive or screw fasteners
Roofing membrane (EPDM, TPO, bituminous felt, etc.)
Flashing and edge trims
Pro Tip: Choose HUAYU PU insulation boards with double-sided embossed aluminum foil for enhanced dimensional stability and fire resistance.
Depending on the roof type and building design, PU insulation board installation methods can vary. Below are the two most common systems:
PU insulation boards are commonly used in Warm Roof systems, where the insulation is laid above the structural deck and below the waterproof membrane.
Structural deck (concrete/metal)
Vapor control layer
PU insulation board
Waterproof membrane (e.g., TPO, EPDM, or bitumen)
Optional ballast or cover (for inverted roofs)
PU boards can be installed in three ways in sloped or pitched roofs:
PU boards placed above rafters
Continuous insulation layer = reduced thermal bridging
Requires counter battens and waterproof membrane
PU boards cut to fit snugly between rafters
More common in retrofits
Ventilation gap must be maintained
PU boards fixed to the underside of rafters
Used when roof exterior can't be disturbed
May reduce internal ceiling height
Let's walk through a step-by-step roof installation guide using PU insulation boards for a flat roof system:
Ensure the surface is clean, dry, and level.
Remove any debris, dust, or loose particles.
Fix any cracks or undulations in the concrete or wood deck.
Unroll and fix the vapor barrier directly to the deck.
Overlap seams by at least 100 mm and seal with aluminum tape.
Extend the barrier up parapets or verticals.
Start from the corner and work across the roof.
Stagger boards in a brick-bond pattern to avoid aligned joints.
Use PU adhesive or fasteners as per manufacturer's guidelines.
Use PU-compatible sealant or tape to seal all board joints.
Pay special attention to roof penetrations (pipes, vents, etc.).
Install chosen membrane directly over insulation.
For torch-on membranes, ensure boards are fire-resistant and compatible.
Secure edges, corners, and flashing as per roofing standards.
Check for gaps, movement, or loose sections.
Add protection layer or pavers if needed (e.g., for walkable roofs).
Record insulation layout for future maintenance.
Avoiding these errors can significantly improve the performance and lifespan of your PU insulation installation:
Always calculate required U-value and choose suitable PU board thickness.
Leaving gaps between boards leads to thermal bridging and condensation.
Skipping the vapor control layer can allow moisture to enter and degrade insulation.
Use only adhesives approved for PU insulation board.
Weight on uncured adhesive may shift boards or create uneven surfaces.
Installing PU insulation boards on your roof is one of the smartest investments for energy efficiency, indoor comfort, and long-term building performance. However, the benefits of this high-performance material can only be fully realized through correct installation methods and attention to detail.
Whether you're insulating a flat roof, pitched roof, or green roof, HUAYU's PU insulation boards offer the thermal efficiency, fire safety, and moisture resistance that modern buildings demand. With OEM & ODM services, aluminum foil facing, and custom thicknesses, HUAYU stands out as a global leader in polyurethane insulation solutions.
Looking for expert advice, samples, or a quotation? Contact HUAYU today and let our technical team assist you with your roofing insulation project.
The ideal thickness depends on your target U-value. Common options range from 30 mm to 150 mm. HUAYU offers custom thicknesses to meet project-specific requirements.
Yes. PU boards are compatible with metal roofing systems and can be installed under metal sheets with or without cover boards.
PU insulation boards are moisture-resistant due to their closed-cell structure, but they should be protected with a waterproof membrane in roofing applications.
Both offer excellent insulation, but PIR has slightly better fire resistance and thermal performance. HUAYU offers both PU and PIR boards depending on your needs.
Ventilation needs depend on the roof system. In warm roof setups, ventilation is often not needed. In cold roofs (between rafters), ventilation is required.
